3D Galvanized V Mesh Security Fencing PVC Coated 50 X 200mm
| Place of Origin | Hebei, China |
|---|---|
| Brand Name | Giant Fence |
| Certification | ISO14001:2015/OHSAS 18001:2007/ ISO9001:2015 |
| Model Number | GF003 |
| Minimum Order Quantity | 50sets |
| Price | Negotiable |
| Packaging Details | 1.panel and post all bulk in the container 2.panel with pallet and post bulk 3.panel and post all packing with pallet |
| Delivery Time | 18-21days |
| Payment Terms | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability | 5000meter per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model Number | Galvanized V Mesh Security Fencing | Wire Diameter | 4.0mm |
|---|---|---|---|
| Opening Size | 50*200mm | Height | 2030mm |
| Width | 2000mm | Bending No | 3 |
| Frame Finishing | Powder Coating | Color | White,red |
| Application | Residential,School | Key Words | 3D Wire Fence |
| Highlight | Galvanized V Mesh Security Fencing,PVC Coated V Mesh Security Fencing,50x200mm Security Fencing |
||
Product Description

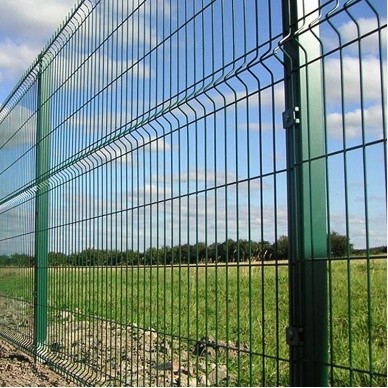

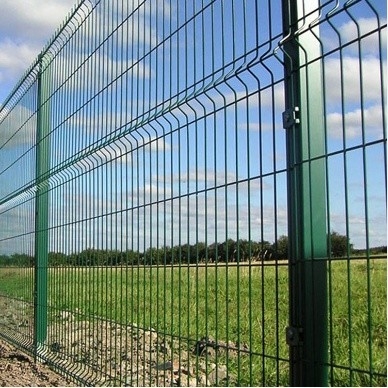

PVC Coated 50 * 200mm 3D Wire Fence Galvanized V Mesh Security Fencing
3D Panel Fence Description

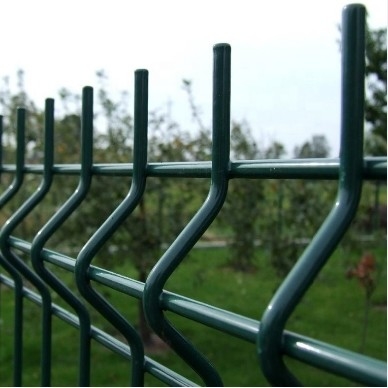

3D Wire Fence is designed for industrial application but it can also be used at sports fields or in the private sectors.The 3D curves on the wires provide great strength, resistance and stability. The wide selection of shades allows adjusting the design of fencing to any individual requirement of the customer and to the architectural requirements of the construction.
The posts for the 3D panel fence can be square tube post, rectangular tube posts, and special post called peach post. Post heights from 1500 mm to 4000 mm
.
3D Panel Fence Application
1> Highways
2> roads
4> railways
5> airports
6> factories
7> living site
8> industrial
9> development zone
Specification
|
Line wire x Cross wire |
Hole Size | Panel Length | Panel Height | Bending No. | Common Color | Surface treatment |
|
4x4mm 4.5x4mm 4.5x4.5mm 5x4mm 5x5mm 6x5mm 6x6mm |
50X100mm 50X200mm 55X200mm 75X150mm 100X300mm
|
2m 2.2m 2.4m 2.5m 2.8m 3m |
2030mm | 3 |
Green RAL6005 Grey RAL7016 Brown RAL8019 Black RAL9005 White RAL9010 |
1.Hot-dipped galvanized after black wire welded 2.PVC coated after galvanized wire welded 3.PE coated after galvanized wire welded |
Specifications Of the Sqaure Post
| Post view | Size | Thickness | Panel height | Base post | Normal post | Surface treatment |
| Square post |
40*40mm 50*50mm 60*60mm |
1.0mm 1.1mm 1.2mm 1.5mm 1.8mm 2mm 2.5mm |
830mm | 850mm | 1200mm |
1.Black tube Hot-dipped galvanized 2.Galvanized tube PVC coated |
| 1030mm | 1050mm | 1400mm | ||||
| 1230mm | 1250mm | 1600mm | ||||
| 1530mm | 1550mm | 2000mm | ||||
| Rectangle post |
30*50mm 40*60mm 60*80mm |
1830mm | / | 2400mm | ||
| 2030mm | / | 2500mm | ||||
| 2230mm | / | 2800mm | ||||
| 2430mm | / | 3000mm |
3D Welded Wire Mesh Fence process
1.Purchase the raw material wire--Zn/Ai coating test--Straightening and cutting--welding panel--Bending--Powder coating or PE coating--loading
2.Post cutting--punching hole on the post -- Powder coating--Loading
Application
- Commercial grounds (Corporation, hotel, supermarket)
- Private grounds (Courtyard, Villadom)
- Public grounds (Park, zoo, train or bus station, lawn);
- Road and transit (Highway, railway or road city transit);
- 3D fence is used as decoration or protection for various facilities in industry,agriculture, transport, etc.
3D Panel Fence Advantage
1> Very high rigidity
The heavy wire 3D bend panel with 8mm horizontal wires provide added strenth and rigidity.
2> High degree of security
Nylofor 3D Super is recommended as fencing for applications where security is crucial as the small apertures and heavy wires give
a high degree of security.
3> Durability
The galvanised heavy wire panel is sealed with an adhesion expoxy coating prior to the PVC coating ensuring a longer lifespan.
